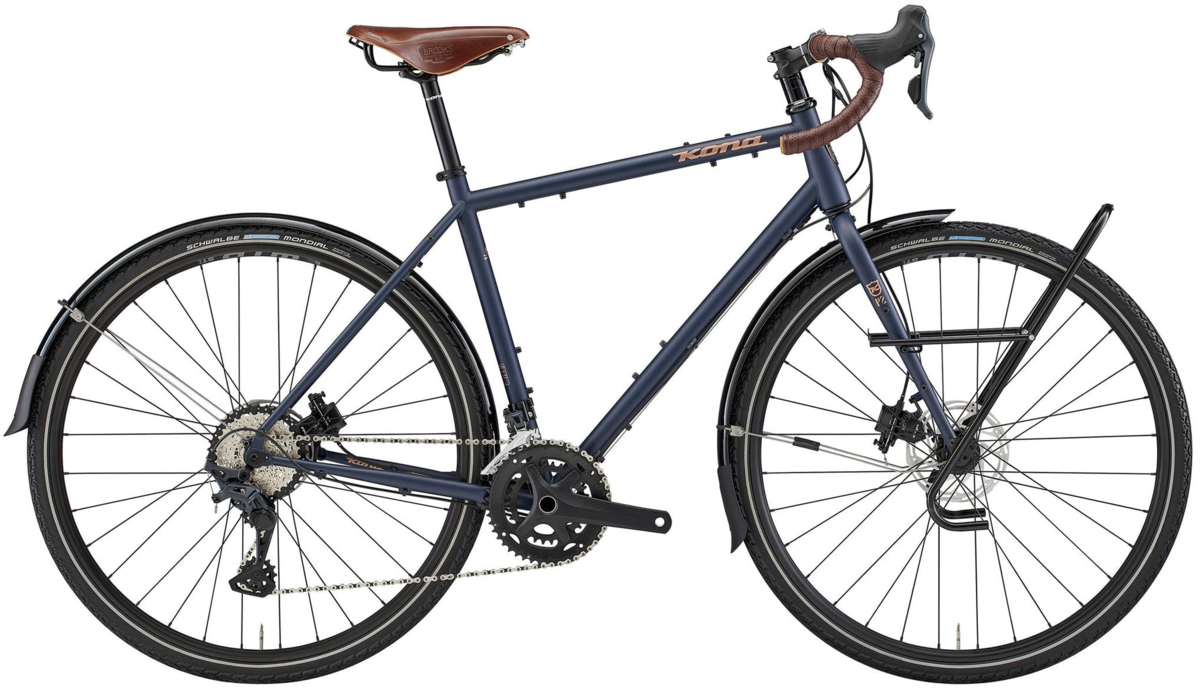

Kona Sutra
$1,499.00
Details
The Sutra is many things. It’s functional. It’s stylish. It’s incredibly versatile, and it comes ready for the long haul on the bike tour of your dreams. Our Kona Cromoly steel frame is outfitted with a Brooks saddle and matching microfiber bar tape, integrated shifter/brake levers, proper fenders, and a real Tubus Tara Big Apple low-rider front rack. It’s a modern take on the classic touring bike. It’s a grocery getter that’s easy on the eyes. It’s the feeling of steel across pavement that reminds you why you love turning the cranks on long rides. Just like its name suggests, it’s the perfect guide for your every ride.

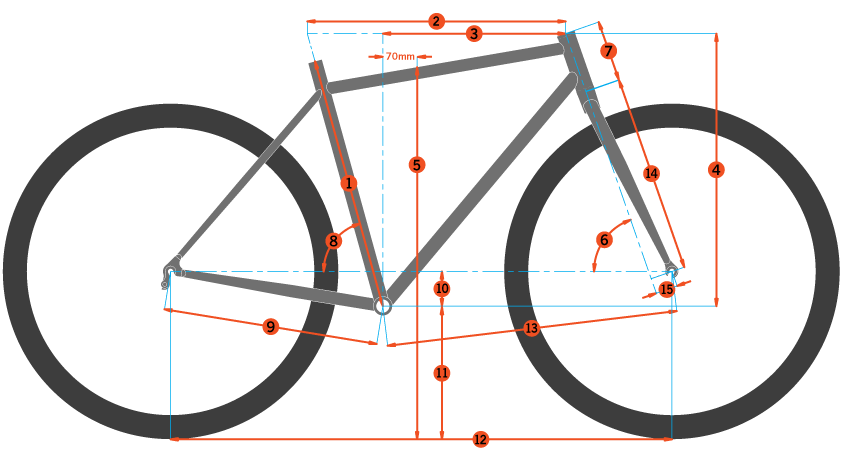

| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
|---|---|---|---|---|---|---|---|
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 523 | 538 | 555 | 571 | 588 | 605 |
| 3 | Reach | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | Stack | 551 | 570 | 591 | 610 | 632 | 651 |
| 5 | Standover | 752 | 770 | 794 | 817 | 835 | 854 |
| 6 | HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT Length | 105 | 125 | 150 | 170 | 195 | 215 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | Wheelbase | 1036 | 1047 | 1061 | 1073 | 1086 | 1098 |
| 13 | Front Center | 602 | 613 | 626 | 638 | 651 | 662 |
| 14 | Fork Length | 415 | 415 | 415 | 415 | 415 | 415 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Specs
| Frame | Kona Cromoly Butted |
|---|---|
| Fork | Kona Project Two Cromoly Disc Touring |
| Rims | WTB ST i23 TCS 2.0 |
| Hubs | Front Hub: Formula 100x12mm, Rear Hub: Formula 142x12mm |
| Spokes | Stainless Black 14g |
| Tires | Schwalbe Marathon Mondial 700x40c |
| Bottom Bracket | Shimano 68mm or Prowheel BB68+ |
| Crankset | Shimano GRX 600 or Prowheel |
| Chainrings | 30/46t |
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano GRX 400 |
| Rear Derailleur | Shimano GRX 400 |
| Cassette/Freewheel | Shimano Deore 11-36t 10spd or Sunrace 11-36t 10spd |
| Chain | Shimano Deore or KMC X10 |
| Brakes | TRP HDC711C Mechanical / Hydraulic |
| Rotors | TRP TR160mm |
| Brake Levers | Shimano Tiagra |
| Handlebars | Kona Road |
| Tape/Grips | Brooks Microfiber Brown |
| Stem | Kona Road |
| Headset | FSA No.1/No.10 |
| Seatpost | Kona Deluxe Thumb w/Offset 27.2mm |
| Saddle | Brooks B17 Leather |
| Accessories & Extras | Fenders w/ Mudflaps, Tubus Tara Big Apple Front Rack |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Satin Midnight w/ Gloss Bronze Decals / 52cm / 700c | 841073151363 | B36SU52 | 210000015290 |
